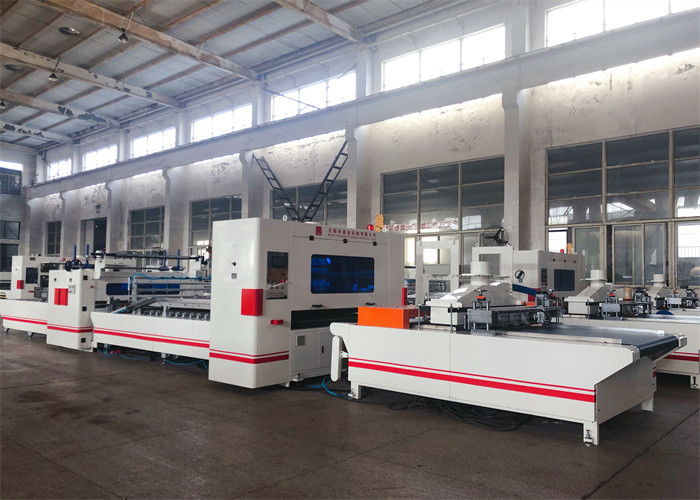

PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor

PVC HPL Acrylic PUR Hot Melt Laminating Machine With Auto Cuttor

1. Basic Panel:

MLB(Multi laminating board)/PVC foam board /MDF/CHIP Board

2. Two Laminating Models Of Face Materials:

① Sheet Model:Like Acrylic/HPLthickness0.35-2mm

② Film Continue Model:LikePVC/PET film thickness 0.1mm-0.5mm but High gloss PVC film thickness more than 0.4mm

3. Working Principal:

① Sheet Model:

The bottom plate is manually fed from the1#Dust cleaning conveyor, after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed to the front stalls by the 3# Automatic laminating machine,the sucker is sucked up from the sheet stacking area (sheet by artificial feeding),automatically attach to glued floor,floor forward transportation,after pressing by 4#Press machine,plate output from 5# Out plate conveyor,artificial feeding.

② Film Continue Model:

The bottom plate is manually fed from the 1#Dust cleaning conveyor,after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# Automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming off by artificial feeding.

3. Technical parameters

1. Panel effective width:800-1300mm

2. Panel effective length:2-2500mm

3. Glued panel effective thickness:5—50mm

4. Composite Panel effective thickness:5—70mm

5. Speed:5-20m/min

6. Opreating height:800mm

7. Total power: About 63KW

8. Visual size:13400*3600*2800mm(With crane)

9. Whole line control:equipment for the whole line control
