HPL Acrylic Lamination Machine PUR Hot Melt Laminating Machine PVC PET 70KW
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300A PUR Hot Melt Laminating Machine |
| Minimum Order Quantity: | 1 SET |
| Price: | USD99000~113400SET |
| Packaging Details: | 2×40 HC+1×20GP（Foam cotton + wrapping film packaging） |
| Delivery Time: | 25 Working Days |
| Payment Terms: | T/T ,Deposit 30% Remaining 70% before departure |
| Supply Ability: | 3 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300A PUR Hot Melt Laminating Machine | Usage: | PVC/PET/HPL/Acrylic Lamination |
| Function: | Decorative | Shelf Life: | 12 Months |
| Visual Size:: | 27000×4000×2800mm | Total Power: | About 70KW |
| High Light: | HPL Acrylic PUR Hot Melt Laminating Machine,PUR Hot Melt Laminating Machine PVC PET,acrylic lamination machine 70KW |
||
Product Description

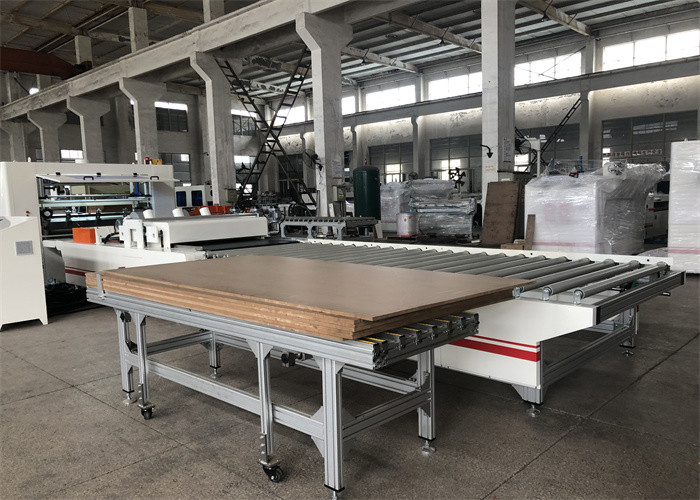

RTM1300A HPL/Acrylic/PVC/PET PUR Hot Melt Laminating Machine
1. Application:
This machine is suitable for MDF/CHIP Board/MLB(Multi laminating board)/PVC foam board…
surface coverd with decorative sheet or coil.
(1) Basic Board:
MLB(Multi laminating board)/PVC foam board /MDF/CHIP Board
(2 )Two Coating Models Of Face Materials:
① Sheet model:PVC/PET/Acrylic
② Film continue model:PVC/PET film
2. Descriptions:
(1) Main Material:Steel welding/Aluminum/A3 Steel plate/Rubber roller/steel roller/Cylinder
(2) Keywords:PUR Glue//Hot-melt Glue/Pasting,Laminating,Coating Machine/ PVC/ PET/ Acrylic/ Aluminium
(3) Driven type:Electric
(4) Condition:New
(5) Machine Color:Customizable
(6) Automatic grade:Semi-Automatic,Customizable Automatic
(7) After-sales service provided:Engineers available to service machinery overseas,Video technical support,Online support
(8) Voltage:380V/50HZ(Or other industrial demand voltage, but the delivery time needs to be increased by 10 working days)
3. Technical parameters
(1) Board max effective width:1300mm；
(2) Board effective length:2100-3000mm；
(Notice:Sheet model Board effective length:2100-2500mm)
(3) Equipment operating height:800mm
(4) Glued board effective thickness:2-50mm
(5) Composite plate effective thickness:2-70mm
(6) Motor power:about21KW
