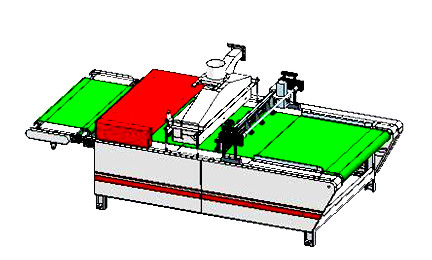

PVC HPL Hot Melt Laminator PUR Hot Melt Glue Machine 63KW 1300mm
Product Details
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300A |
Payment & Shipping Terms
| Minimum Order Quantity: | 1 SET |
| Price: | USD55000~64000/SET |
| Packaging Details: | 1×40 HC +1×20 GP （8 Packages） |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, |
| Supply Ability: | 2 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300A | Product Name: | PVC HPL Laminating Machine |
| Weight: | About 7400KG | Warranty: | 12 Months |
| Voltage: | 380v 50HZ | Dimension(l*w*h): | 13400×3600×2800mm |
| Total Power: | About 63KW | High Light: | PVC hot melt laminator,PVC HPL Laminating Machine 1300mm,pur hot melt glue machine 63KW |
Product Description
PVC/HPL Laminating Machine Using PUR Hot Melt Glue
Application of plate
This machine is suitable for MDF/CHIP Board/MLB(Multi laminating board)/PVC foam board…
surface laminated with decorative sheet or coil for example: PVC/PET/Acrylic/HPL and so on.
Technical parameters
1. Panel max effective width:1300mm
2. Panel effective length:2100-2500mm
3. Operating height:800mm
4. Glued paneleffective thickness:2-50mm
5. Composite panel effective thickness:2-70mm
6. Whole line control: equipment for the whole line control.
Payment
30%TT in advance 70% TTbefore departure.
