PVC PET Film Acrylic HPL Coating Laminating Machine Laminating Production Line PUR
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300A PUR Laminating Machine |
| Minimum Order Quantity: | 1 SET |
| Price: | USD62000~66000/SET |
| Packaging Details: | 1×40 HC +1×20 GP |
| Delivery Time: | 25 work days |
| Payment Terms: | T/T |
| Supply Ability: | 3 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300A PUR Laminating Machine | Feature: | Customizable |
| Glue: | PUR Hot-melt Glue | Warranty: | 12Months |
| Visual Size: | 13400×3600×2800mm | Face Material: | PVC,Acrylic,PET,PETG,HPL |
| Basic Board: | MLB(Multi Laminating Board)/PVC Foam Board /MgO Board / MDF/CHIP Board | High Light: | Acrylic Coating Laminating Machine,HPL Coating Laminating Machine,laminating production line PUR |
Product Description

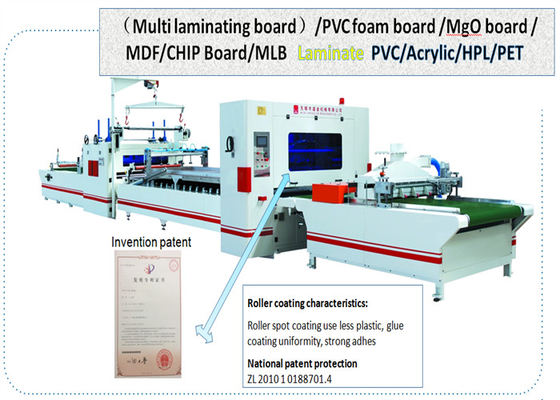

PVC PET Film /Acrylic/HPL/PET sheet Coating Laminating Machine
Time limit for delivery:25 working days
Technical parameters
1. Plate effective width: 800-1300mm；
2. Plate effective length:400-2600mm；
3. Glued Plate effective thickness:2—50mm
4. Composite Plate effective thickness:5—70mm
5. Speed:5-20m/min
6. Total Power:63KW
7. Working height:800mm
8. Packing material:Pearl cotton + winding film packaging
9. Container type and quantity:1×40 HC +1×20 GP
10. Number of packages:8 Packages
Two laminate models
1. Sheet model:
MLB(Multi laminating board)/PVC foam board /MgO board /
MDF/CHIP Board laminate Acrylic/HPL/PET sheet.
2. Film continue mode:
MLB(Multi laminating board)/PVC foam board /MgO board /
MDF/CHIP Board laminate PVC/PET film.
