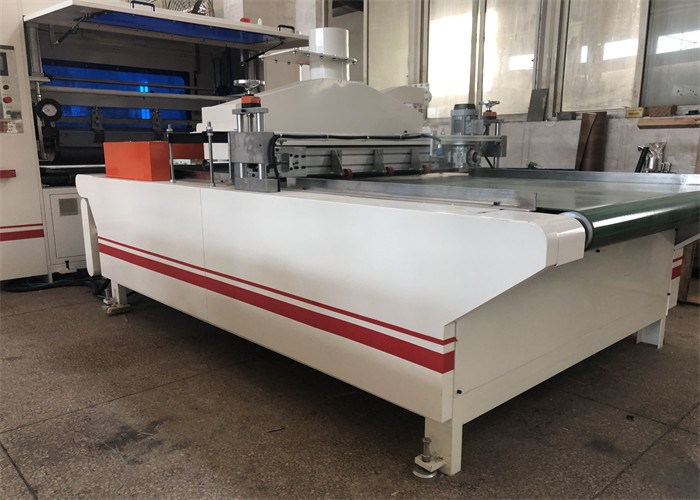

400-2600mm PVC Film Coating Laminating Machine Coater Laminator
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD58000~68000/SET |
| Packaging Details: | Foam cotton + wrapping film packaging |
| Delivery Time: | 20 -30work days |
| Payment Terms: | T/T ,Deposit 30% Remaining payment 70% before departure |
| Supply Ability: | 3 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300 | Usage: | Laminate PVC,Acrylic,PET,HPL On MDF/PVC Foam Board |
| Feature: | Customizable | Weihgt: | About 7500KG |
| Visual Size: | 12334×3600×2800mm | Total Power: | 61.2KW |
| High Light: | PVC Coating Laminating Machine,coater laminator 400mm,coater laminator 2600mm |
||
Product Description
PVC Film Coating Laminating Machine Without Auto Cutter
Time limit for delivery:After received deposit 20 working days(Non standard voltage 30 working days)
Payment method:30% deposit, full payment before departure
Working Principle
1. Sheet model:Laminate HPL/Acrylic/PET sheet
2. Film continue mode:Laminate PVC/PET film,
When bottom plate is manually feded from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming Manual cut-off.
Technical parameters
1. Plate effective width:400-2600mm
2. Plate effextive length:1000-2500mm
3. Glued Plate effective thickness:2—50mm
4. Composite Plate effective thickness:5—70mm
5. Voltage:380V 50HZ
6. Working height:800mm
7. Warranty:1 year
8. Speed:5-20m/min
