PUR Glue PVC Film Coating Laminating Machine 5-20 M/Min 800mm
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300 PUR Sticking Machine |
| Minimum Order Quantity: | 1 SET |
| Price: | USD58000~68000/SET |
| Packaging Details: | 1×40 HC +1×20 GP （8 Packages） |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T ,Deposit 30% Remaining payment 70% before departure |
| Supply Ability: | 3 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300 PUR Sticking Machine | Usage: | PVC,Acrylic,PET,PETG,HPL |
| Feature: | Customizable | Glue: | PUR |
| Voltage: | 380V 50HZ | Weihgt: | About 7500KG |
| Speed: | 5-20m/min | High Light: | PUR Glue PVC Film Coating Laminating Machine,pvc laminating machine 20M/Min,pvc laminating machine 800mm |
Product Description
PVC Film Coating Laminating Machine Using PUR Glue
Time limit for delivery:After received deposit 20 working days
Payment method:30% deposit, full payment before departure
Technical parameters
1. Plate effective Max width: 1300mm；
2. Plate effective length:400-2600mm；
3. Glued Plate effective thickness:2—50mm
4. Composite Plate effective thickness:5—70mm
7. Total power:61.2KW;
8. Working height:800mm
9. Warranty:12Months

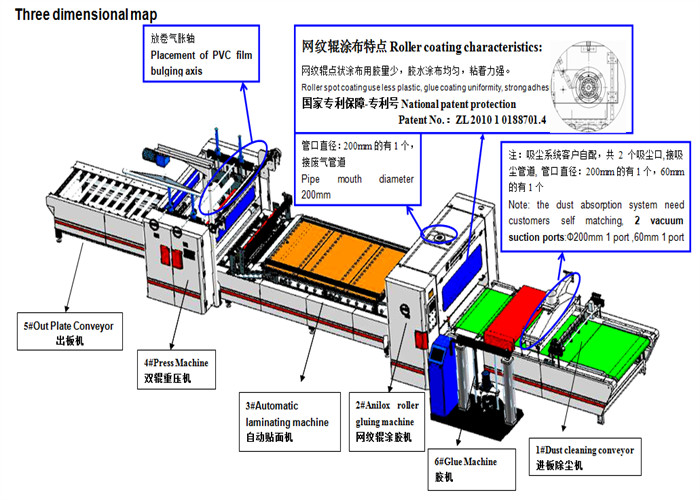

Working Principle
1.Sheet model: The bottom plate is manually fed from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,The bottom plate is coated with glue, then conveyed to the front stalls by the 3# automatic laminating machine,the sucker is sucked up from the sheet stacking area (sheet by artificial feeding),automatically attach to glued floor,floor forward transportation,after pressing by 4#press machine,plate output from 5# out plate conveyor,artificial feeding.
2.Film continue mode: The bottom plate is manually fed from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming off by artificial feeding.
