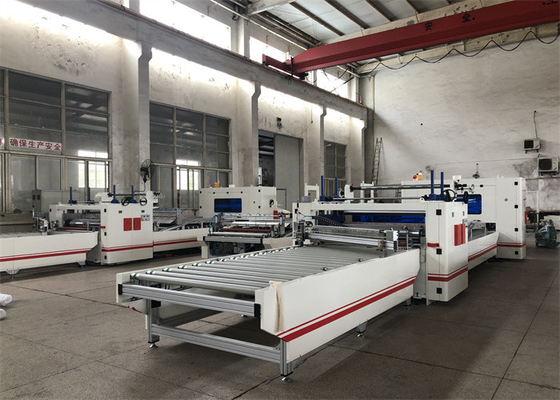

HPL Acrylic PVC PET PUR Hot Melt Adhesive Coating Machine Auto Cuttor 63.04KW

RTM1300A HPL/Acrylic/PVC/PET PUR Hot Melt Adhesive Coating Machine Witht Auto Cuttor

1. Usage:

Laminating MLB(Multi laminating board)/PVC foam board /MDF/CHIP board with surface decorative sheet or coil.

2.Two Coating Models Of Face Materials:

(1) Basic Board:MLB(Multi laminating board)/PVC foam board /MDF/CHIP Board

(2) Face Materials

① Sheet model:Acrylic/HPL

② Film continue model:PVC/PET film

3. Working Principle

1. Sheet model:

The plate is manually fed from the front section of 1#Dust cleaning conveyor, and then glued through 2#Anilox roll Gluing machine working together with 6# Glue machine, and then transported to 3# Automatic laminating machine Stop by the front pneumatic stop column, and then the suction cup absorbs the sheet material and align with the bottom plate then transported to 4# Press Machine. After being pressed by 4# Press Machine , the finished plate is output by the 5# Automatic cutting machine (only for conveying the plate).

2. Film continue mode:

The plate is manually fed from the front section of 1#Dust cleaning conveyor, and then glued through 2#Anilox roll Gluing machine working together with 6# Glue machine, and then transported to 3# Automatic laminating machine (only for conveying plate). Then transported to 4# Press Machine , and then the equipment is started to continue conveying the bottom plate; the film is tightly bonded with the bottom plate through the pressing roll pressing of 4# Press Machine. When the bottom plate is transported to the 5# Automatic Cutting Machine, and the plate head is captured by the photoelectric eye of plate length measurement, the automatic cutting mechanism is started, and the cutting knife automatically cuts off the roll film, and then the finished plate is output.

4.More Descriptions:

Keywords:PUR Glue//Hot-melt Glue/Pasting,Laminating,Coating Machine/ PVC/ PET/ Acrylic

(1)Main Material:Steel welding/Aluminum/A3 Steel plate/Rubber roller/steel roller/Cylinder

(2)Machine Color:Customizable

(3)Driven type:Electric

(4)Condition:New

(5)Warranty:12 Months

(6)After-sales service provided:Engineers available to service machinery overseas,Video technical support,Online support

(7)Voltage:380V/50HZ(Or other industrial demand voltage, but the delivery time needs to be increased by 10 working days)

5.Technical parameters

1.Board effective width:1000-1300mm

2.Plate effective length:1500-2600mm

3. Glued Plate effective thickness:5—50mm

4. Composite Plate effective thickness:5—70mm

5.Speed:5-20m/min

6.Working height:800mm
