1300mm Hot Melt Glue Coating Machine 1500-3100mm 5-20m/Min 93kw
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300G |
| Minimum Order Quantity: | 1 SET |
| Price: | USD115000~118000/SET |
| Packaging Details: | 2×40 GP (11 PKGS) |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300G | Product Name: | HOT-MELT GLUE STICKING MACHINE |
| Board Maximal Effective Width: | 1300mm | Board Effective Length: | 1500-3100mm |
| Board Effective Thickness: | 2-50mm | Equipment Operating Height: | 800mm |
| Motor Power: | 24.93kW | Speed: | 5-20m/min |
| Total Power: | 93kw | High Light: | Hot Melt Glue Coating Machine 1500mm,Hot Melt Glue Coating Machine 3100mm,hot melt coater 93kw |
Product Description

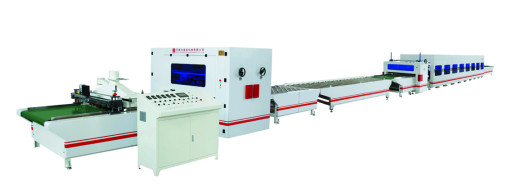

RTM1300G HOT-MELT GLUE STICKING MACHINE
Capability and use:
RTM1300G HOT-MELT GLUE STICKING MACHIN is specially developed for customers, it’s a new special-purpose equipment.It consists of seven standalone unit and two PUR glue suppliers.Among them, the double gluing machine is equipped with a set of gluing device for reticulated rolls and a set of gluing device for upper and lower reticulated rolls.
The production process is briefly described as follows:substrate is preheated by dedusting and then coated with PUR hot melt adhesive on double coating machine,artificial placement of frames, built-ins and panels on the roller assembly table,after pressing, the finished sheet is exported by the output plate machine.
Technical parameters:
1. Board maximal effective width: 1300mm;
2. Board effective length: 1500-3100mm;
3. Board effective thickness :2-50mm
4. Effective thickness of composite Door: 5-70mm
5. Equipment operating height : 800mm
6. Motor power: 24.93kW;
7. Speed:5-20m/min；
8. Total power: 93kw
9. Visual size:22120×4800×2200mm(L×W×H)
