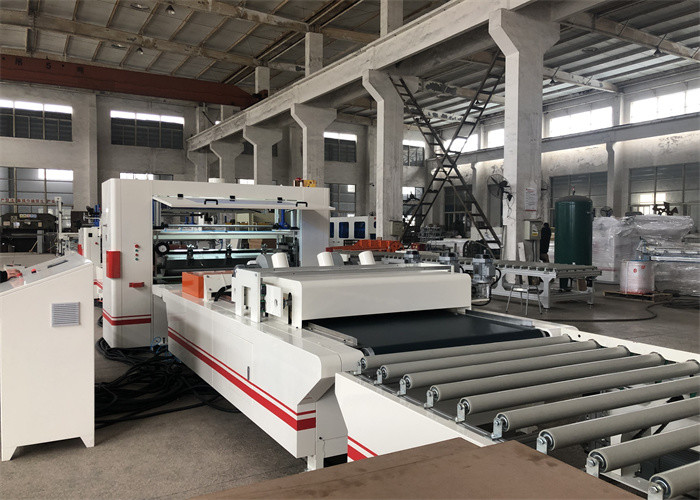

HPL Acrylic PVC PET PUR Hot Melt Laminating Machine Without Auto Cuttor
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300 PUR Hot Melt Laminating Machine |
| Minimum Order Quantity: | 1 SET |
| Price: | USD98000~113400SET |
| Packaging Details: | 2×40 HC+1×20GP（Foam cotton + wrapping film packaging） |
| Delivery Time: | 25 Working Days |
| Payment Terms: | T/T ,Deposit 30% Remaining 70% before departure |
| Supply Ability: | 3 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300 PUR Hot Melt Laminating Machine | Function: | Decorative |
| Warranty Period: | 12 Months | Visual Size:: | 27000×4000×2800mm |
| Total Power: | About 70KW | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | High Light: | HPL Acrylic Hot Melt Laminating Machine,PUR Hot Melt Laminating Machine,PUR Laminating Machine 70KW |
Product Description
1.Usage:
This line is suitable for laminating MLB(Multi laminating board)/PVC foam board /MDF/CHIP board
with surface decorative sheet or coil.
2.Two Coating Models Of Face Materials:
①Sheet model:PVC/PET/Acrylic
②Film continue model:PVC/PET film
3.Technical parameters
(1)Board max effective width:1300mm；
(2) Board effective length:2100-3000mm；
(Notice:Sheet model Board effective length:2100-2500mm)
(3)Equipment operating height:800mm
(4)Glued board effective thickness:2-50mm
(5)Composite plate effective thickness:2-70mm
(6) Motor power:about21KW
4.More Descriptions:
(1)Main Material:Steel welding/Aluminum/A3 Steel plate/Rubber roller/steel roller/Cylinder
(2)Keywords:PUR Glue//Hot-melt Glue/Pasting,Laminating,Coating Machine/ PVC/ PET/ Acrylic/ Aluminium
(3)Driven type:Electric
(4)Voltage:380V/50HZ(Or other industrial demand voltage, but the delivery time needs to be increased by 10 working days)
(5)Machine Color:Customizable
(6)Automatic grade:Semi-Automatic,Customizable Automatic
5.Technical parameters
(1)Board max effective width:1300mm；
(2) Board effective length:2100-3000mm；
(Notice:Sheet model Board effective length:2100-2500mm)
(3)Equipment operating height:800mm
(4)Glued board effective thickness:2-50mm
(5)Composite plate effective thickness:2-70mm
(6) Motor power:about21KW
