PVC Automatic Lamination Machine Acrylic HPL PET Sheet 20m/Min
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300 PUR Automatic Lamination Machine |
| Minimum Order Quantity: | 1 SET |
| Price: | USD55000~60000/SET |
| Packaging Details: | 1×40 HC +1×20 GP （Pearl cotton + winding film packaging） |
| Delivery Time: | 20work days |
| Payment Terms: | T/T ,Deposit 30% Remaining payment 70% before departure |
| Supply Ability: | 2SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300 PUR Automatic Lamination Machine | Keywords: | Hot Melt Glue |
| Total Power: | 61.2KW | Condition: | New |
| Speed: | 5-20m/min | Automatic Grade: | Semi-Automatic |
| Voltage: | 380V/50HZ | Driven Type: | Electric |
| High Light: | PVC Automatic Lamination Machine,Automatic Lamination Machine Acrylic HPL,pet lamination machine 20m/Min |
||
Product Description

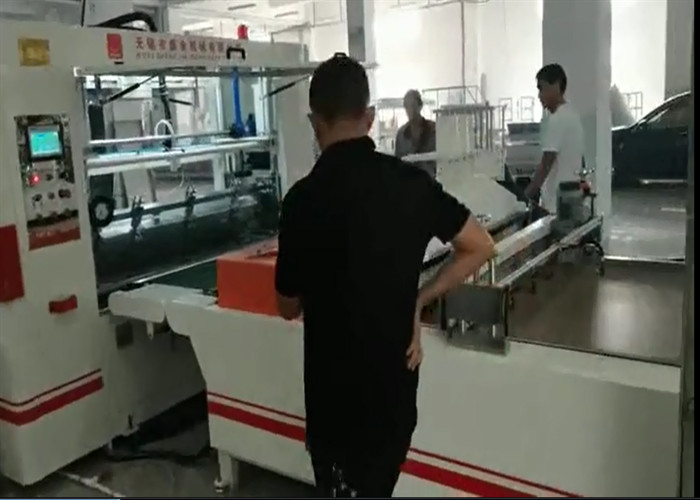

Acrylic HPL PET Sheet / PVC PET Film Automatic Lamination Machine
Process Description
1. Sheet Model
Cveyed toThe bottom plate is manually fed from the1#Dust cleaning conveyor, after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed to the front stalls by the 3# Automatic laminating machine,the sucker is sucked up from the sheet stacking area (sheet by artificial feeding),automatically attach to glued floor,floor forward transportation,after pressing by 4#Press machine,plate output from 5# Out plate conveyor,artificial feeding.
2. Film Continue Model
The bottom plate is manually fed from the 1#Dust cleaning conveyor,after 2#Anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# Automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming off by artificial feeding.
Technical parameters
1. Board Max effective width:1300mm；
2. Plate effective length:1000-2500mm；
3. Glued Plate effective thickness:2-50mm
4. Composite Plate effective thickness:2-70mm
5. Speed:5-20m/min
6. Voltage:380V/50HZ(Or other industrial demand voltage, but the delivery time needs to be increased by 10 working days)
7. Working height:800mm
8. Total Power:61.2KW
9. Weight:About 7200-7300KG
10. Visual size:12334×3600×2800mm
