0-60m/Min Fully Automatic Cardboard Box Assembly Machine PUR Glue
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | BZ1100 Automatic Cardboard Box Packing Machine |
| Minimum Order Quantity: | 1 SET |
| Price: | USD72900~79000/SET |
| Packaging Details: | 1×40 GP (4PKGS) |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 4SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | BZ1100 Automatic Cardboard Box Packing Machine | Product Name: | Cardboard Box Assembly Machine |
| Voltage: | 380V/50HZ Or Other Industrial Demand Voltage, But The Delivery Time Needs To Be Increased By 10 Working Days) | Main Frame: | The Left And Right Wall Panels Are 10mm A3 Steel. |
| Driven Type: | Electric | Machine Color: | Customizable |
| Keywords: | PUR Glue/BZ1000/ Packing Machine | High Light: | 60m/Min carton box assembly machine,carton box assembly machine 10mm A3 Steel,Cardboard Box Assembly Machine PUR Glue |
Product Description

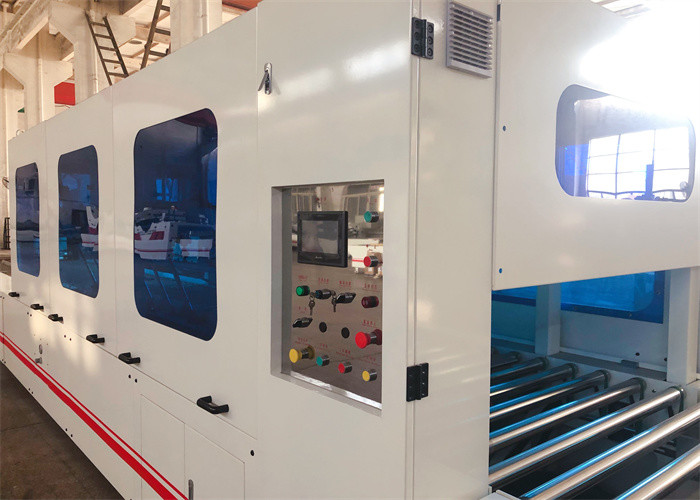

BZ1100 Fully Automatic Cardboard Box Assembly Packing Machine Using PUR Glue
1. Technical parameters
Cardboard Box thickness:50-300mm
Cardboard Box width:200-1000mm
Cardboard Box length:400-2400mm
Operation height :800mm
Total power:11.5kw (Host 7kw+Glue machine 4.5kw)
Speed:0-60m/min
2. More Descriptions:
Keywords:PUR Glue/BZ1000/ Packing Machine
(1) Main Material:10mm A3 Steel/Rubber roller/steel roller/Cylinder
(2) Glue Machine:Robatech Glue Melting Machine
(3) Weight:About 6000KG
(4) Warranty:12 Months
(5) Number and model of containers:1×40GP (Pearl cotton + winding film packaging)
(6) After-sales service provided:Engineers available to service machinery overseas,Video technical support,Online support
3. Instructions for each subsection part
(1) First conveyor Part:designed for conveying the unclosed boxes. The exterior dimension is ,24 stainless steel rollers convey boxes, the boxes can be conveyed sequentially and continuously.
(2) Second Spraying & Packing Part:designed for conveying packing boxes and spraying glue. Spraying and packing the front end, side end, back end. 33 stainless steel rollers convey boxes, the boxes can be conveyed sequentially and continuously. The machine will stop and the front-end and side baffle movements accurate positioning of the boxes. when the shutdown photoelectric head catches the boxes.
At the same time, the front and side spraying heads start to move and spray glue on the front and side of the boxes, then when the spray head is finished, pneumatic cylinder drives pressure sticker down, complete the sealing action, then the machine starts and continues to move the boxes forward. When the photoelectric head to capture the package, machine reversal and shutdown, back baffle rises, put the packing boxes in place, at the same time, the spray head of the back end starts to move and sprays glue on the back end of the packing boxes. Then when the spray head is finished, pneumatic cylinder drives pressure sticker down, complete the back-end closure action. Then the machine starts, and continues to forward the finished packing boxes.(Robatech Glue Melting Machine)
(3) Third Outlet Part: designed for conveying the finished packaging boxes, 15 stainless steel rollers convey boxes, the boxes can be conveyed sequentially and continuously.
