Acrylic HPL PVC PET Film Coating Laminating Machine PUR Glue 1000-1300mm
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300A PUR Laminating Machine |
| Minimum Order Quantity: | 1 SET |
| Price: | USD55000~59900/SET |

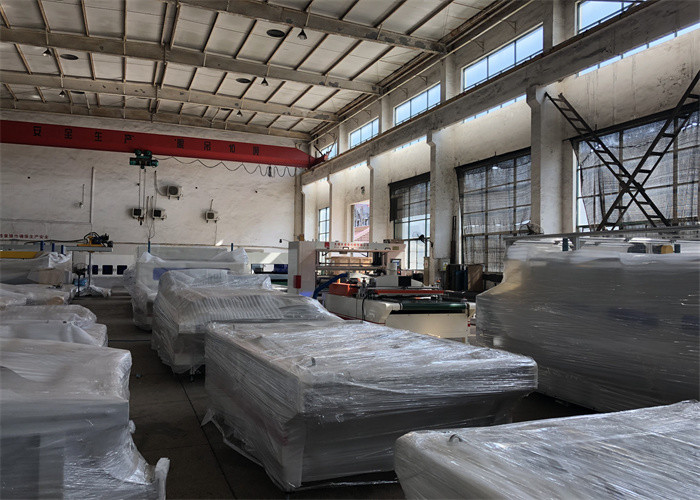

| Packaging Details: | 1×40 HC +1×20 GP （Pearl cotton + winding film packaging） |
| Delivery Time: | 20-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300A PUR Laminating Machine | Glue: | PUR Adhesive |
| Warranty: | 1 Year | Face Material: | PVC,Acrylic,PET,PETG,HPL |
| Basic Board: | MLB(Multi Laminating Board)/PVC Foam Board /MgO Board / MDF/CHIP Board | Weight: | About 7250KG |
| High Light: | Acrylic HPL Coating Laminating Machine,Coating Laminating Machine PUR Glue,pur laminating line 1300mm |
||
Product Description
Acrylic HPL PET sheet / PVC PET Film Coating Laminating Machine Using PUR Glue
Feature:Customizable
Time limit for delivery:20-30 working days
Working Principle
1. Sheet model:
The bottom plate is manually fed from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,The bottom plate is coated with glue, then conveyed to the front stalls by the 3# automatic laminating machine,the sucker is sucked up from the sheet stacking area (sheet by artificial feeding),automatically attach to glued floor,floor forward transportation,after pressing by 4#press machine,plate output from 5# out plate conveyor,artificial feeding.
2. Film continue mode:
The bottom plate is manually fed from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming off by artificial feeding.
Technical parameters
1. Plate effective width:1000-1300mm；
2. Plate effective length:1500-2600mm；
3. Glued Plate effective thickness:2—50mm
4. Composite Plate effective thickness:5—70mm
5. Speed:5-20m/min
6. Total Power:61.2KW
7. Visual size:12334*3600*2800mm
8. Working height:800mm
9. Number of packages:8 Packages
