PUR Hot Melt Glue Sticking Machine Width 400-1300mm 800mm 18.6kw
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300 |
| Minimum Order Quantity: | 1 SET |
| Price: | US103000~113000/SET |
| Packaging Details: | 2×40 HC （Foam cotton + wrapping film packaging） |
| Delivery Time: | 30 work days |
| Supply Ability: | 2 SET /Month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300 | Packaging Type: | Foam Cotton + Wrapping Film Packaging |
| Name: | Hot Melt Heating Pasting Machine | Cleaning Type: | Clean-In-Place (CIP) |
| Thickness Of Composite Sheet: | 5-70mm | Working Height: | 800mm |
| Motor Power: | 18.6kw | High Light: | pur hot melt glue machine 800mm,pur hot melt glue machine 1300mm,hot melt glue machine 18.6kw |
Product Description
RTM1300 PUR HOT-MELT PASTINGTING MACHINE
1. Special:Customizable
2. Payment method: 30% deposit, full payment before departure
3. Product application:Whiteboard/Honeycomb panel furniture,for sugarcane board and corrugated board surface laminating color coated board required by the manufacturer.
4. Technical parameters:
1) GluedBoard max effective width 400-1300mm
2) GluedBoard effective length 400-2600mm
3) Glued Board effective thickness 2-50mm
4) Thickness of composite sheet 5-70mm
5) Working height :800mm
6) Motor power 18.6kw
7) Total power About 74kw
8) Laminating Speed:5-20m/min
9) Control mode: the equipment is the whole line control.
10) The equipment is equipped with a dustproof system and a monitoring system.

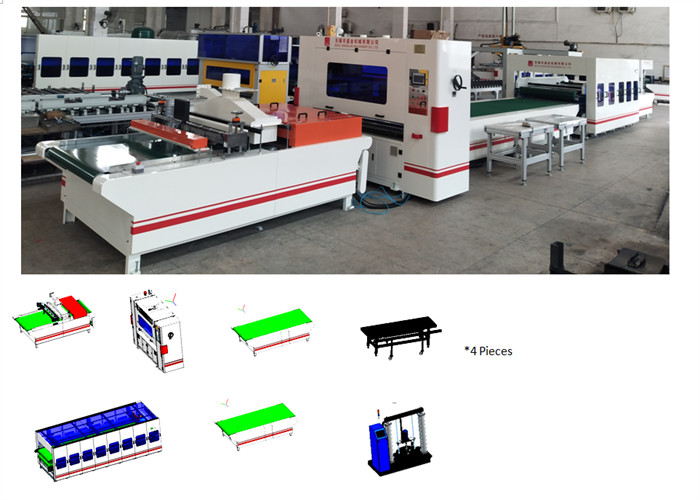

5. Working Principle
The gluing base plate is manually fed from the front part of the 1# dust cleaning conveyor, after 2#anilox roll gluing machine,3#conveyor,positioning at 4# assembly station, manual placement of frames and corresponding fillers, second glued soleplates, the second floor plates are bonded to the surface of the frame by manual operation, slight pressure, manually press the 4# side start button, the good fit material is conveyed to the 5# heavy press for initial compression, press and keep pressure through 6# multi-roller presser, manual blanking at the end of 7#out plate conveyor.
