Door Panel Veneering Wood Coating Machine PUR Adhesive 1300mm
| Place of Origin: | CHINA |
| Brand Name: | Sheng jin |
| Model Number: | RTM1300 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD103000~105000/SET |
| Packaging Details: | 2×40 GP (10 PKGS) |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | Sheng jin |
|---|---|---|---|
| Model Number | RTM1300 | Name: | Door Laminating |
| Standard Voltage: | 380V/50HZ | Specific Voltage: | According To Customer Requirements |
| Automatic Grade: | Automatic | Warranty: | 12 Months |
| Packaging Material: | Plastic | High Light: | Door Panel Veneering wood coating machine,wood coating machine 1300mm,coating laminating machine PUR Adhesive |
Product Description

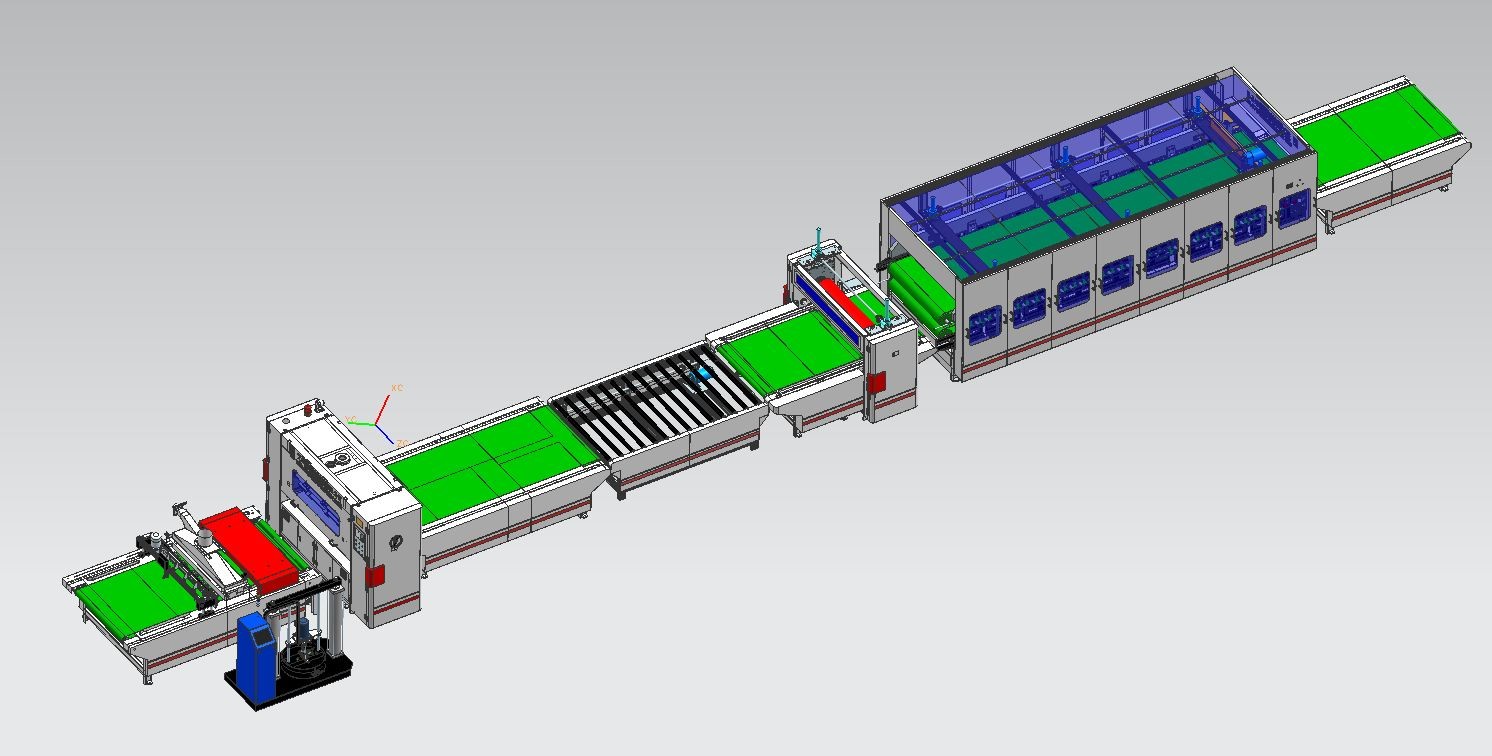

RTM1300 PUR Adhesive Industrial Woodworking Coating Machine For Door Panel Veneering
Working Principle
The gluing base plate is manually fed from the front part of the 1# dust cleaning conveyor, after 2#anilox roll gluing machine,3#conveyor,positioning at 4# assembly station, manual placement of frames and corresponding fillers, second glued soleplates, the second floor plates are bonded to the surface of the frame by manual operation, slight pressure, manually press the 4# side start button, the good fit material is conveyed to the 5# heavy press for initial compression, press and keep pressure through 6# multi-roller presser, manual blanking at the end of 7#out plate conveyor.
| No. | Applicable conditions |
| 1 | Board max effective width:1300mm |
| 2 | Board effective length:400-2600mm |
| 3 | Board effective thickness:2-50mm |
| 4 | Effective thickness of composite Door:5-70mm |
| 5 | Equipment operating height:800mm |
| 6 | Motor power:20.91KW |
| 7 | Speed:5-20m/min |
| 8 |
Visual size:21300×3600×2200mm(L×W×H) |
| 9 | Total power:60.91kW |
| 10 |
Control mode: the equipment is the whole line control |
| 11 |
The equipment is equipped with a dustproof system and a monitoring system. |
About Us
Our company locates in Wuxi City,Jiangsu Province-a place with beautiful scene, developed economy ,fruitful talent resources,and convenient transportation.We are professionally engaged in manufacturing surface treatment equipments for different kinds of decoration materials.Through years of continuous development and innovation, we are now able to supply a complete series of light industry decoration machine including lamination, hot stamping, printing, coating, etc.
Qur representative products include: RTM1300A PUR Hot-melt Glue Laminating Machine,RTM1300B PUR Hot-melt Glue Automatic Cutting Line BZ800 Packing Line,RTM1100A PUR Hot-melt Glue Laminating Machine Of Door KFL1300/300 High Speed Floor Sealing Wax Machine,FMTY300/400/800Board Stick Film Hot-stamp MachineSTY200/1300 Floor End Coating Machine (water-based paint)FMD300/400/600 Multifunctional Stick Film machine, PRLFMD300 Hot and Cold Glue Multifunctional Machine,SLT200 High Speed Hot-Stamp Machine DT300-1300 Plate Angle Hot-stamp Machine BF200 Floor Stick Soundproof Pad Machine YBW series Dicolor/Tricolor Board Printing Machine, etc.
In 2005, Shengjin's product was awarded with Famous Brand Product of Jiangsu Province.Taking the principle of "customer first, quality first, service first", holding the spirits of dynamic innovation and continuous development, we will be actively participating the market competition with new technology, and provide customers with high profitable and best quality products.
